QKV Decomposition for Transformer XAI

Diagnose transformer prediction failures from weights alone, then correct them by retraining one layer. GPT-2 capital-city accuracy 2/8 → 8/8 with zero side effects, achievable through any of attention, FFN, or V-only (590K params).

What this paper does

This is a reproducible empirical demonstration of surgical correction for routing failures in transformer language models. The work sits within a recent literature on mechanistic interpretability and model editing that has converged on closely related observations:

  • Internally encoded knowledge often fails to surface in output — “transformers know but don’t tell” (Liu et al. 2024).
  • The final layer suppresses correct predictions through an anti-overconfidence mechanism (Lv et al. 2024).
  • Knowledge can be edited at locations beyond MLP, e.g., relation-token weights (Wu et al. 2024 — “Relation Also Knows”).
  • Layer-by-layer knowledge circuit tracing is established (Yao et al. 2024 — NeurIPS).
  • Architectural variation determines where facts are routed; attention modules in some architectures contribute more than MLP (Choe et al. 2025).

This work contributes a clean specific demonstration on GPT-2 small: targeted retraining of a 590K-parameter Wv slice (0.5% of the model) recovers all 8 capital-city facts with zero measurable side effects on general capability, and publicly released corrected weights enable independent verification.

Applied to GPT-2: factual knowledge (e.g., France→Paris) emerges at layer 10 head 8 (+25.8 logit contribution) and is subsequently reversed at layer 12 head 0 (+149.9 for “the”) — consistent with the anti-overconfidence mechanism reported by Lv et al. Targeted retraining of only the diagnosed layer recovers knowledge accuracy from 2/8 to 8/8 capitals with zero side effects (general capability 11/15 maintained, PPL 42.7 → 42.6).

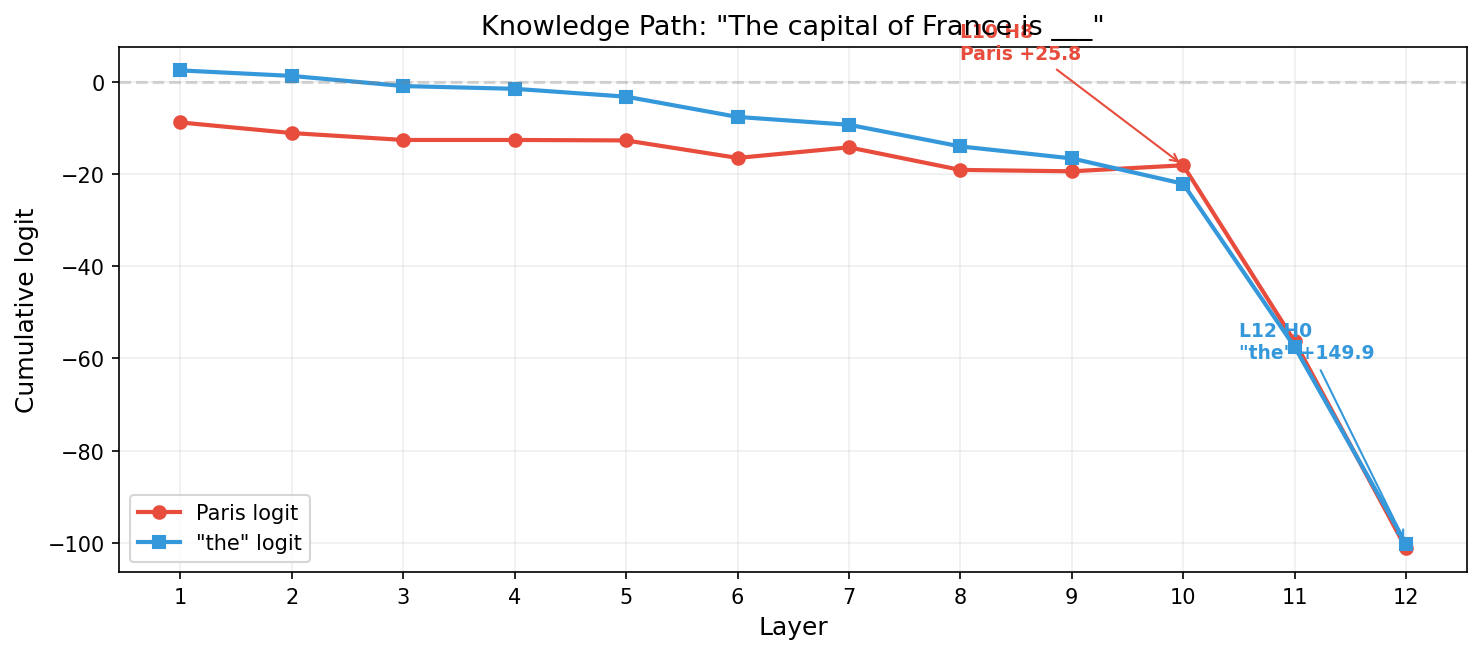

Layer-by-layer cumulative logit for Paris vs the
Knowledge path: Paris emerges at L10 H8, gets reversed at L12 H0.

The model already possesses this knowledge internally; the failure is one of routing, not absence.

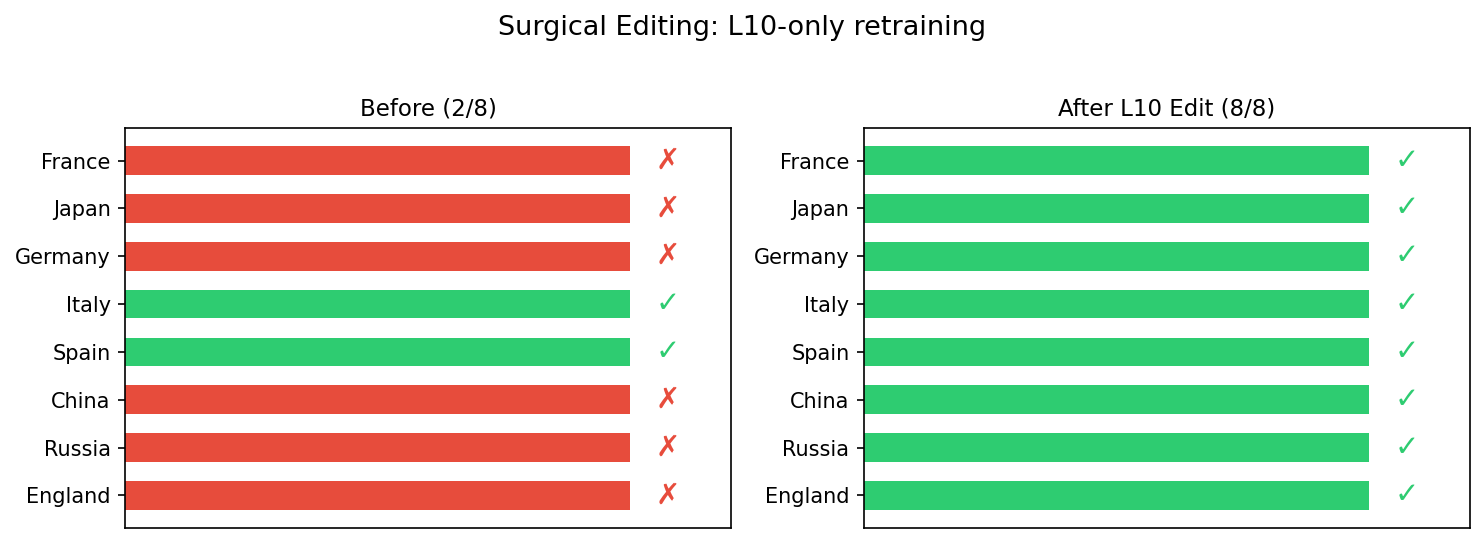

Before and after L10-only retraining: 2/8 → 8/8 capitals
L10-only retraining: 2/8 → 8/8 capitals, zero side effects.

Why it matters

Routing correction can be achieved through attention V, FFN, or even V-only (Wv slice, 590K parameters — 0.5% of GPT-2). This is consistent with the broader observation that knowledge routing is not confined to FFN layers (Wu et al. 2024; Choe et al. 2025), and adds quantitative specificity: a 590K-parameter modification suffices, well below the parameter footprint of standard MLP-edit methods. The result clarifies that methods restricting edits to MLP layers (e.g., ROME) target storage — appropriate for knowledge insertion, but unnecessarily narrow when the underlying failure is routing.

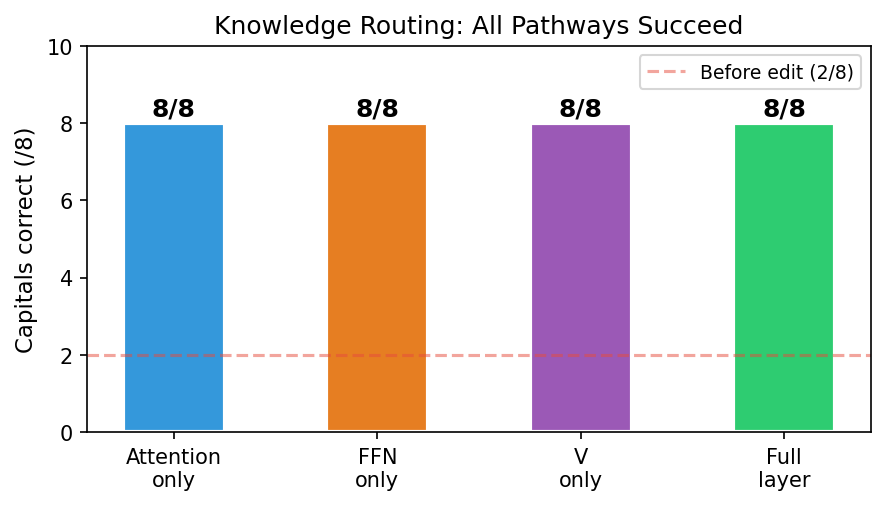

Four pathways all reach 8/8 capitals correct
All four training configurations reach 8/8. V-only (590K params) suffices.

This opens correction pathways beyond MLP-only model editing.

What’s specifically new here

Component-level findings (routing failures, late-layer suppression, non-MLP editability) sit within the recent literature cited above. What this work adds:

  1. Head-to-head comparison of four correction pathways under identical evaluation — full L10 layer (7.1M params) vs. attention only (2.4M) vs. FFN only (4.7M) vs. V-only Wv slice (590K). All four reach 8/8 with zero side effects; 590K (0.48% of GPT-2) is identified as the minimum sufficient scale. Prior work proposes single-site edits without systematic cross-pathway comparison.

  2. Combined static (input-free) and dynamic (per-input) diagnosis feeding the same prescription target — input-free Q/K/V weight classification of all 144 heads (Section: Static diagnostics) together with per-input logit-trace decomposition jointly identifying L10 as the correction site. Prior work typically uses one diagnostic mode in isolation.

  3. End-to-end public artifact set — diagnosis scripts, corrected GPT-2 weights at four parameter scales, an interactive head dashboard, and tri-tool cross-validation outputs publicly released for independent verification.

  4. Side-effect protocol with 25 held-out probes — separating general capability (15 probes) from unrelated tasks (10 probes), providing finer-grained side-effect measurement than aggregate perplexity drawdown alone.

The integration is the contribution, not any single component.

Static diagnostics (input-free)

The method also classifies all 144 attention heads in GPT-2 small directly from weights — no input pass required:

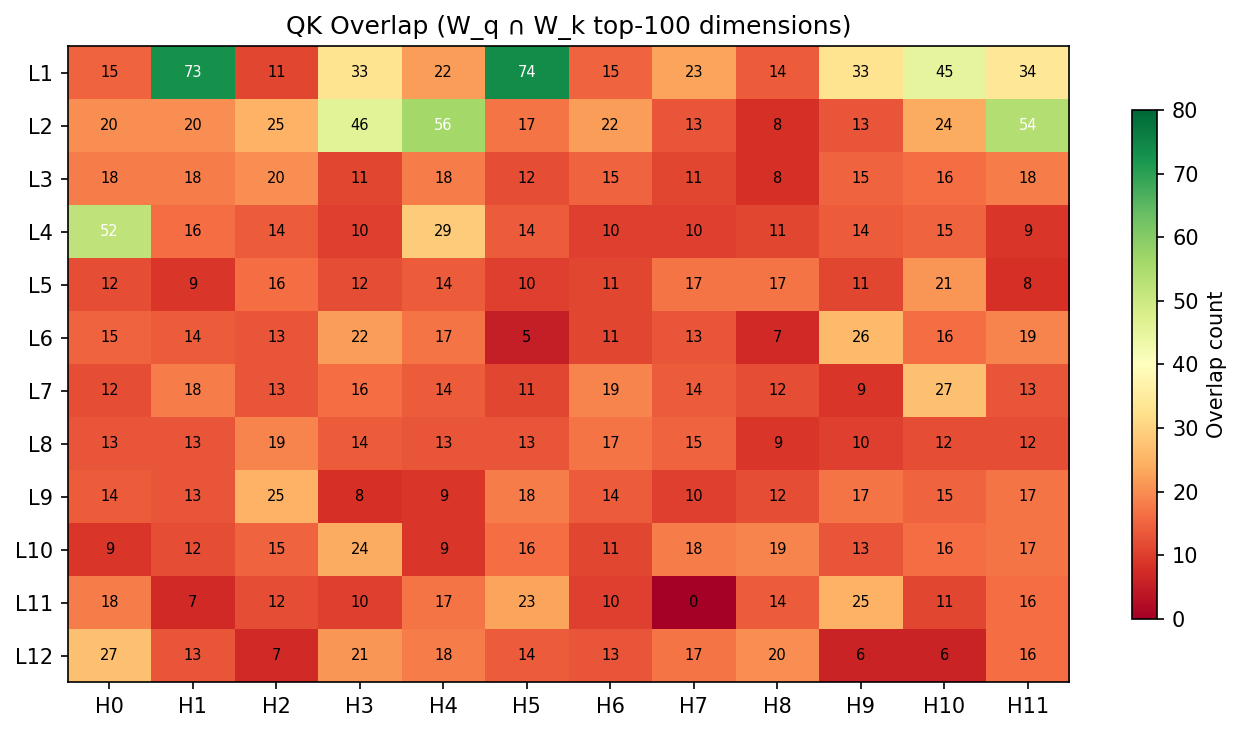

QK overlap heatmap across all 144 attention heads
QK overlap (top-100 dimension intersection). High values = self-similar matching; low = heterogeneous.

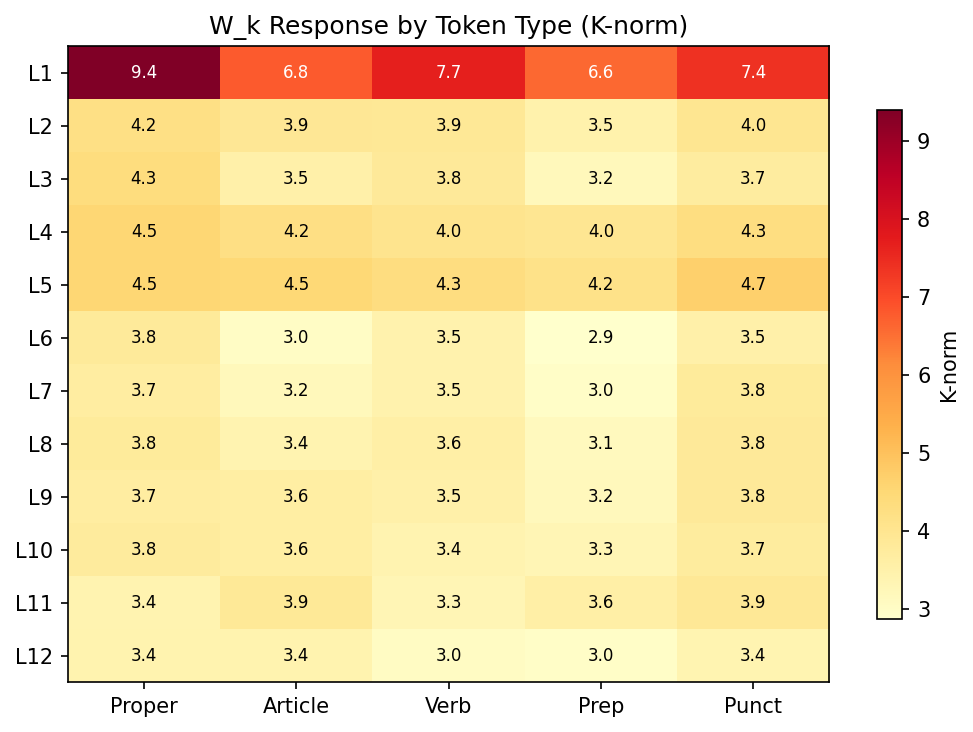

Wk response by token type across layers
K-norm by token type. Proper nouns have the highest response across all layers — yet the model fails to retrieve facts about them. The bottleneck is on the Q side.

Cross-validation

  • Captum (gradient × activation): top-1 neuron agreement (n=2440)
  • TransformerLens logit lens: same routing layer identified
  • Activation patching: confirms causal involvement (-0.44 logit when neuron zeroed)

Verify

  • Zenodo — paper PDF + permanent DOI for citation.
  • HuggingFace dashboard — corrected GPT-2 L10 weights, QKV analysis scripts, interactive dashboard, all figures. Anyone can re-run the 8 capital-city prompts and check.

arXiv preprint: forthcoming.
